◆ can flow transmitter with a variety of sensors used with
◆ temperature and pressure-pressure, α compensation, ε compensation
◆ superheated steam, the steam automatically determine status
◆ steam temperature compensation; communication
◆ off the record, no paper record

● flow of input channels: an acceptable frequency signals and a variety of analog signal.
● pressure, temperature input channels: accept a variety of analog signal.
● available transmitter +24 V DC, +12 V DC power supply (a short-circuit protection), to simplify the system, saving investment.
● simple fault-tolerant features: temperature, pressure compensation in the measurement signal abnormalities, using the manual settings corresponding to compensate operators.
● roving display, for monitoring a number of variables to facilitate the process.
● flow send out periodic updates 0.5 seconds, automatic adjustment to meet the need.
● instrument clock and timing automatic meter reading functions, printing, management measures for the convenience.
● rich self-diagnostic features that make instruments easier to use and maintain.
● passwords to prevent unauthorized personnel change has been set of data.
● any instrument with no internal potential, such as adjustable switch coding devices, thereby enhancing the instrument-tolerance, stability and reliability.
● specially designed WDT circuit, a power-on reset circuit and power to ensure that data protection circuit the normal operation of electricity meters, power data is not lost. Power back-up batteries do not have data protection, the protection of the time 10.
● with the top computer data communications, energy measurement of network systems.
● In addition to the conventional temperature compensation and pressure compensation, temperature and pressure compensation, but also on the table:
● General gases "compression factor" (Z) compensation;
● natural gas "super-compression factor" (Fz) compensation;
● nonlinear flow coefficient for compensation;
● Differential Flowmeter may expansion coefficient compensation;
● cadres at the wet gas flow calculation is very sound.
● According to temperature and pressure steam in the value of automatic judgement overheating or saturation point, respectively, look-up table and get density.

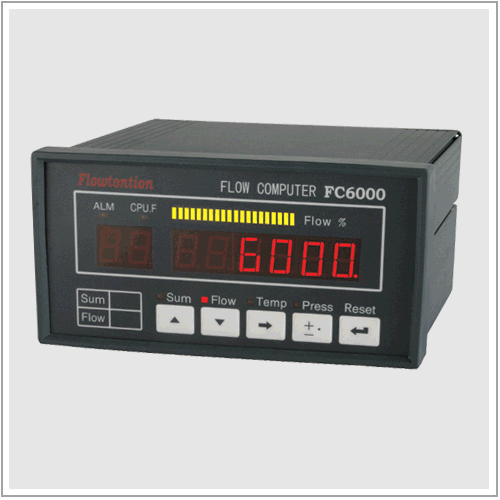

● use configuration mode, a traffic routing FC 6000-with all of the above functions. On the users, not know the status of parameters, sensor parameters can be selected this table to resolve various flow measurement problems.
